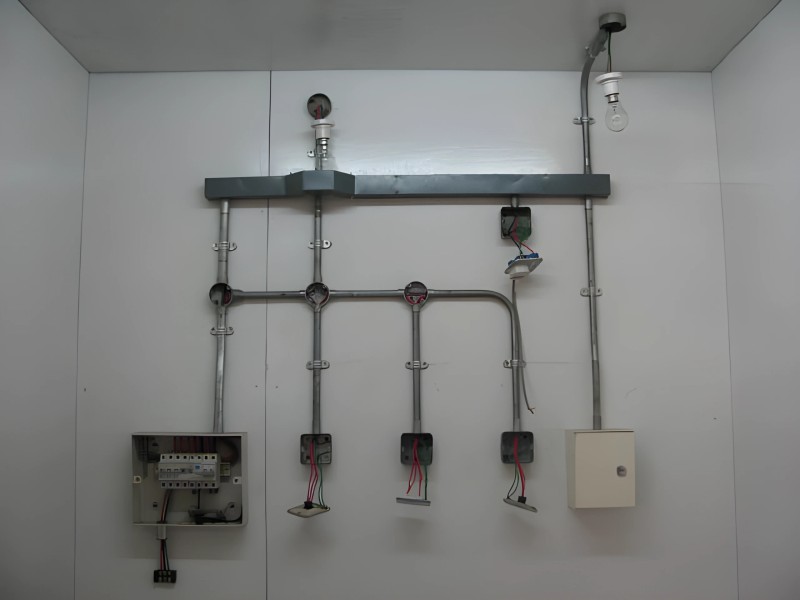

Electrical Wiring installation

Electrical wiring installation involves setting up the electrical system in a building or structure to safely and effectively deliver power to outlets, switches, lighting fixtures, and appliances. Here’s a general guide on how electrical wiring installation is done, typically in residential or light commercial settings:

⚠️ Important:

Electrical wiring should be done by a licensed electrician or under their supervision. Mistakes can result in fire hazards, electrocution, or violation of local electrical codes.

🔧 Basic Tools & Materials

• Wire cutters/strippers
• Pliers
• Voltage tester
• Screwdrivers
• Drill
• Fish tape
• Materials:
• Electrical cables (e.g., NM-B “Romex”, or conduit wiring)
• Junction boxes
• Switches and outlets
• Circuit breakers
• Electrical panel
• Cable clamps and wire nuts
• Electrical tape

🔌 Step-by-Step Electrical Wiring Installation

1. Plan the Layout

Identify the locations of outlets, lights, switches, and the electrical panel.

Determine circuit requirements (amps, number of outlets per circuit).

Follow the local electrical code (e.g., NEC in the U.S.).

2. Install the Electrical Panel

Mount the main service panel or sub-panel.

Connect the grounding electrode system (ground rod or rebar in the foundation).

3. Run the Electrical Cables

Drill holes through studs/joists if needed.

Run NM cable or conduit wiring through the holes to boxes.

Leave at least 6 inches of extra wire inside boxes.

4. Install Electrical Boxes

Secure junction, outlet, and switch boxes at each location.

Make sure boxes are flush with drywall/plaster line.

5. Make Wire Connections

Strip insulation from wire ends.

Use wire nuts or push-in connectors to join wires.

Connect hot (black/red), neutral (white), and ground (bare/green) properly.

6. Connect to the Panel

Route each circuit into the panel.

Connect hot wires to circuit breakers.

Connect neutrals to the neutral bus bar.

Connect grounds to the ground bus bar.

7. Install Devices

Mount outlets, switches, and light fixtures.

Use faceplates to cover devices.

8. Test the Installation

Use a voltage tester or multimeter to check each circuit.

Verify proper grounding and polarity.

Turn on breakers one at a time to test circuits.

🧯 Safety Tips

Always turn off power at the main panel before working on wiring.

Use GFCI outlets in kitchens, bathrooms, and outdoors.

Avoid overloading circuits.

Label all circuits at the panel.
